Class 8 Spray Painting Cleanroom Air Shower With Stainless Steel Nozzle
Introduce :
Clearnoom air shower is used to blow away dust on clothing, equipments, materials and tools
before workers or objects enter the Clean Room; meanwhile, its Air Lock function may effectively
control personnel passing in and out, as well as act as various levels of buffer room for clean room to prevent cross pollution.
Parameter for the biomedical Clearnroom Air Shower Unit :
| Model No | Size (WXDXH) |
| HA-AS1300P1 | 1300X100X2000 |
| HA-AS1300P2 | 1300X2000X2000 |
| HA-AS1300P3 | 1300X3000X2000 |
| Constructions (material ) | Stainless Steel/steel with power coated |
| Operation Time (Adjustable) | 0-99 seconds adjustable |
| Pre Filter | Washable pre-filter unit (Non-WovenSynthetic Polyester) |
| HEPA Filters | mini-pleats Glass pleated non-woven fabric filter having 99.99% efficiency 0.3 micron particle size. |
| Air Flow | One side/two side/tower flow/multidirectional |
| Face velocity | 6000 ft./min + 20 feet |
| Air Flow Control | Solid State Control Unit |
| Illumination | Fluorescent light illumination greater than 800 lux on work table |
| Blower Assembly | Centrifugal lubricated bearing type ISI marked assembly |
| Noise level | Noise level less than 75 dB |
| Add on Features | Sequential feature operation by door mat magnetic switch. |
| Power Requirements | 1.5K watts – 4Kwatts (Model specific) |
| Nominal voltage | 220/380Volts, |
| Frequency | 50/60 Hz |
CUSTOMIZABLE SIZES ARE ALSO AVAILABLE
Air Shower Unit Insdie Picture :
stainless steel automatic air shower nozzle and HEPA Air filter:

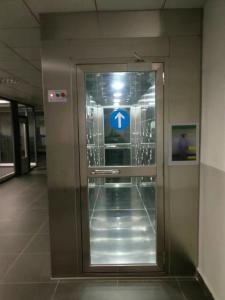

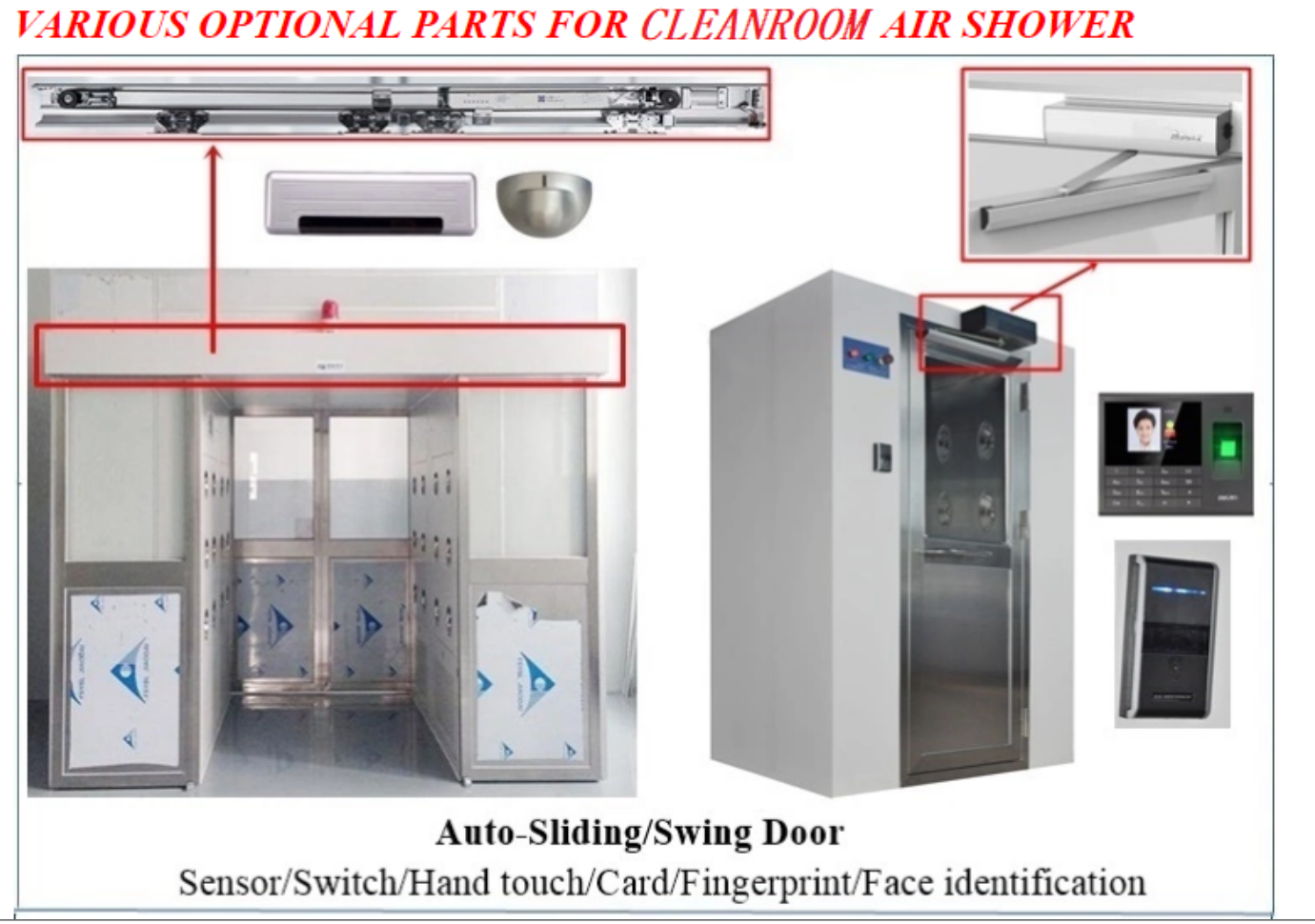

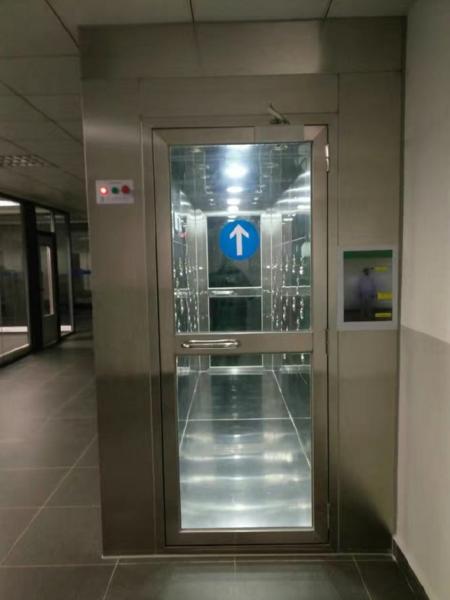

Automatic Slide door Air shower For Cleanroom :
Cleanroom Air Shower Detial :

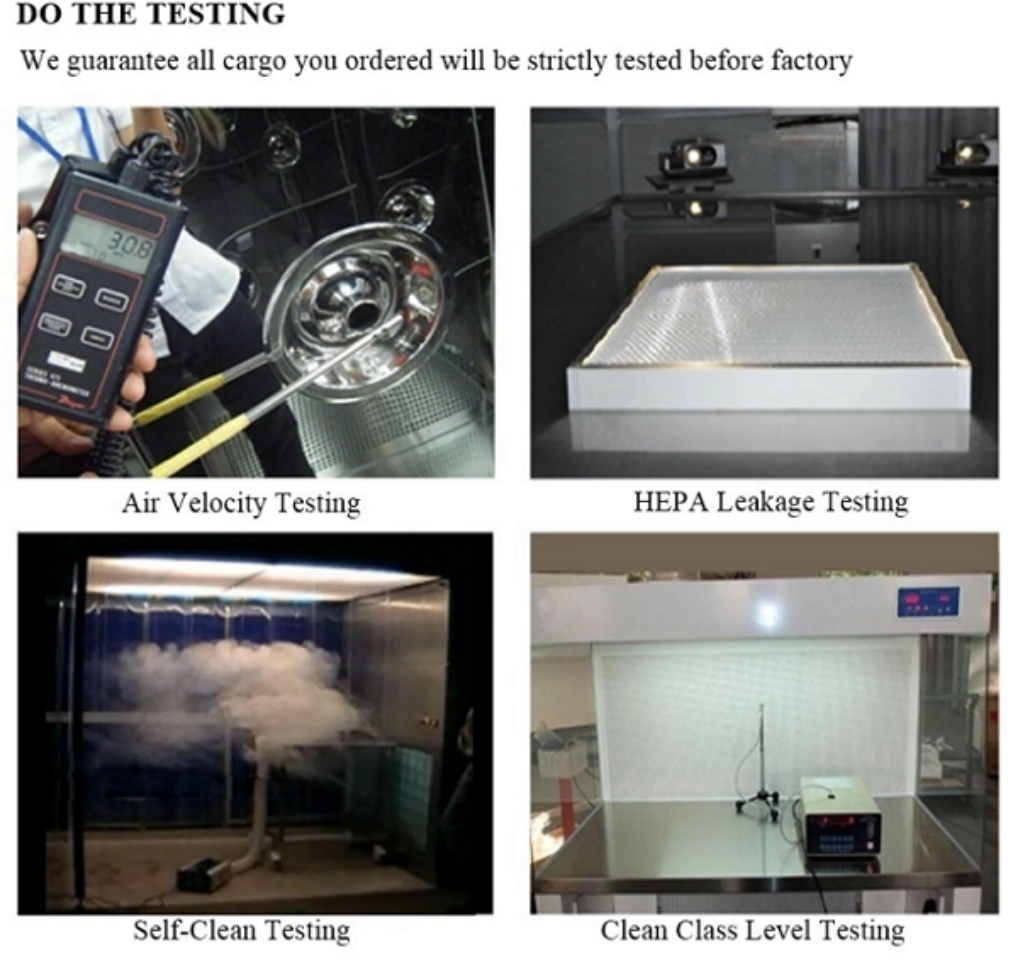

Testing in cleanroom :
Our Advantage:
1:Own factory with competitive price
2: Automatic production line.
3:Nearly 10 years experience in cleanroom industry.
4:We are an expert in providing customized solutions.
5:Timely delivery with perfect quality.
6:Fortune 500 companies’ choice.
7:Have passed ISO9001.2008 certification.
Our Services:
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
