LED Panel Assembly Workshop Material Cleanroom Air Shower Wind Speed Adjustable

  • 1
  • 2

Brand Name : K-LING

Model Number : KEL-AS

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets per month

Delivery Time : 7-15 working days

Packaging Details : Polywood packing

Material : Stailess Steel SUS304/201/316 /galvanized Sheet

Blowing way : Two Side Auto Blowing

Lock : Electric Interlock

Application : LED Panel Assembly Workshop

Wind Speed : 25-30 m/s, wind speed adjustable

Original : GuangZhou China

Contact Now

LED Panel Assembly Workshop Material Cleanroom Air Shower Wind Speed Adjustable

Description

1.Intention: Material Airshower is a necessary passage when materials entering the clean room , it can reduce the pollution problems of Materials brought into the clean room.

2.Process: The electronic interlocking doors of the material airshower , and gas can effect chamber to prevent un-cleaned air into the clean room, reducing dust contamination of the clean room during the cargo out of the clean room . When materials into the airshower, high-speed and efficient clean air filter can be spraied to materials by the injection nozzle in all directions.

3. Purposes: to effectively remove dust particles carried by materials, the air with dust particles and re-cycling by the early HEPA filtered into the airshower area.

LED Panel Assembly Workshop Material Cleanroom Air Shower Wind Speed Adjustable

Parameter:

Model KEL-AS ​-1000 KEL-AS -1500 KEL-AS -2000 KEL-AS -3000
External size
(W*D*HMM)		 1300*1000*2050 1300*1500*2050 1300*2000*2050 1300*3000*2050
Internal size
(W*D*HMM)		 800*900*1900 800*1400*1900 800*1900*1900 800*2900*1900
JET speed 20-25M/S
No. of Nozzles 12 16 24 36
No. of Blower 2 2 4 6
Power supply AC,1PH,220V 50/60HZ or AC, 3PH, 380V, 50/60HZ
Power consumption(APPROX) 1100W 1200W 2200W 3300W
HEPA Filter Efficiency 99.99% or more at 0.3um particles
Size 760*570*70mm 760*570*70mm 760*570*70mm 760*570*70
No. 2 2 4 6
Pre-filter synthetic fiber
Construction casing SUS304 stainless steel or Powder baked epoxy finishing steel
Floor SUS304
Door SUS304
Light fitting 20W*1 20W*1 20W*2 20W*3
Weight
APPROX)		 190KG 260KG 360KG 550KG
No. of person capacity 1 1-2 2-3 3-4


Customer’s design is available.

Indoor air clean room installation parameters specification required:

Temperature and humidity requirements temperature is generally 23 + 2 ºC, relative humidity of 55 + 5%
Large fresh air to ensure that the amount of fresh air per hour indoor ≥40m3 / h
Large air air flow (ventilation frequency is ≥25 times / h)
Pressure the main workshop adjacent room ≥5Pa
Average wind speed 100: 0.3-0.5m / s
Noise ≤65dB (A)
Illuminance ≥300LX
Ventilation times 100,000 ≥18 times; 10000 ≥30 times; 1000≥50 times
Floor use 2mm / 3mm epoxy or PVC flooring, electronic anti-static flooring plant optiona

Package & Deliver Picture

LED Panel Assembly Workshop Material Cleanroom Air Shower Wind Speed Adjustable


Product Tags:

semiconductor clean room



lab clean room


Wholesale LED Panel Assembly Workshop Material Cleanroom Air Shower Wind Speed Adjustable from china suppliers

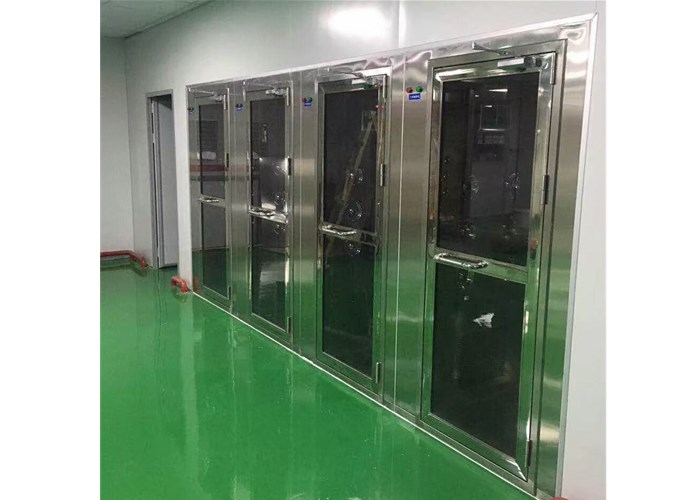

LED Panel Assembly Workshop Material Cleanroom Air Shower Wind Speed Adjustable Images
